Keyence

Keyence KV-X310 PLC, IP is 192.168.0.10, HMI IP is 192.168.0.40

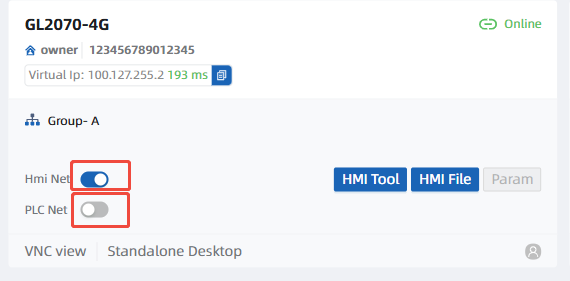

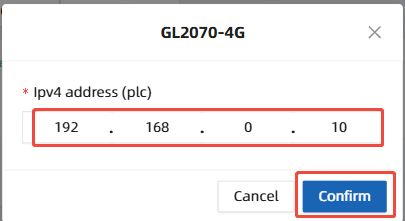

After the VPN Connection is Successful, Open the EA Software, Turn on the HMI, Turn on the PLC Connection, and Enter the PLC IP

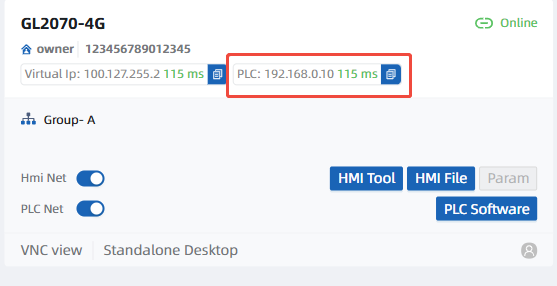

After connecting, you can see the network status of PLC

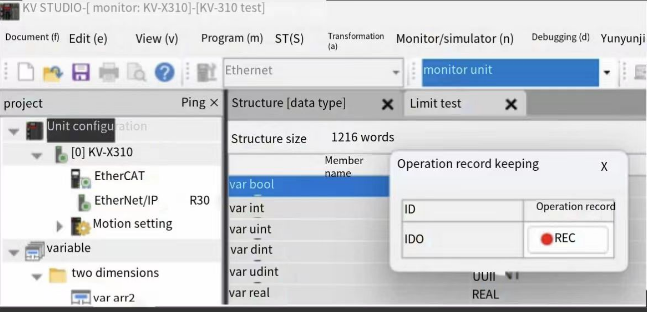

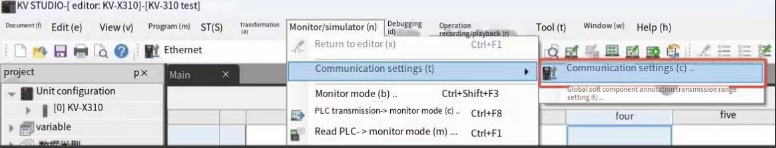

Open PLC software

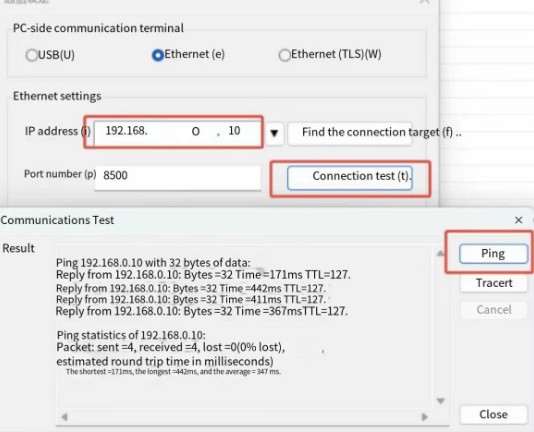

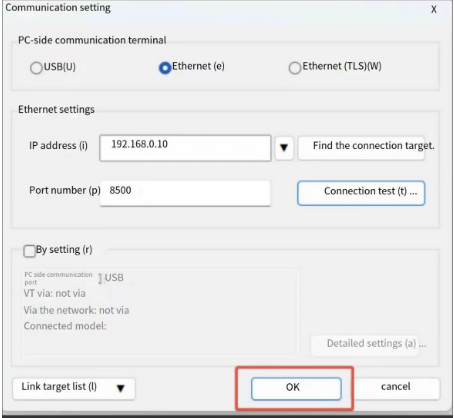

After entering the IP of PLC, click connection test, click ping
